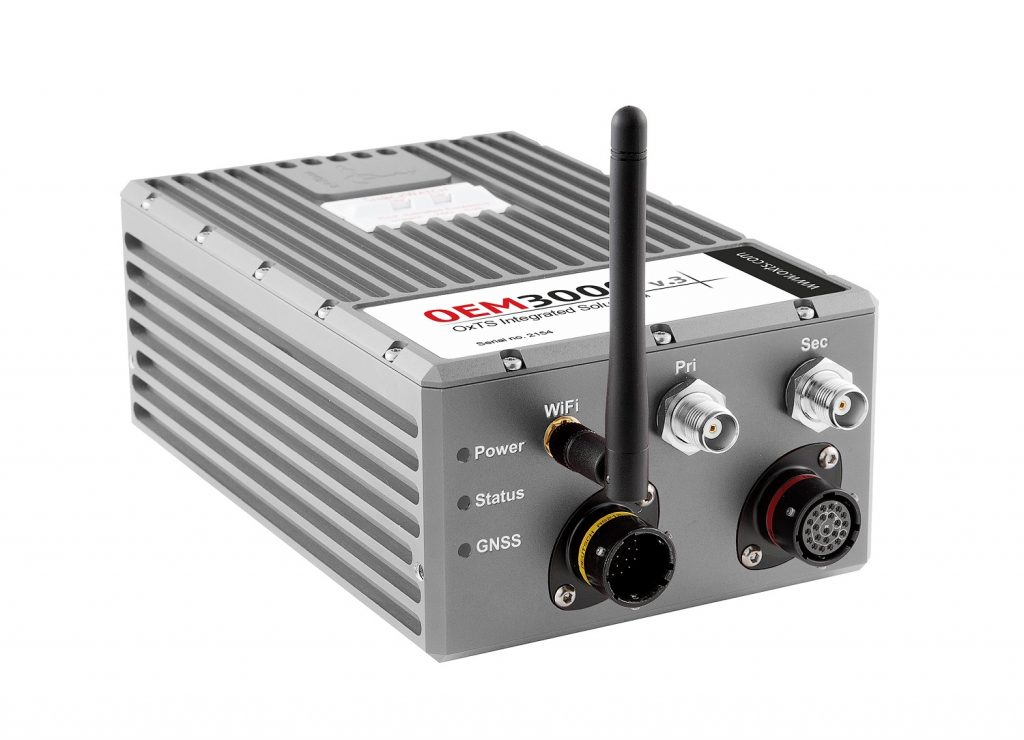

Our highest performance INS for product integration

When your product demands precision, confidence, and reliability, the OEM3000 provides a complete position and motion reference to support your application. An ITAR free solution, it is commercially exportable and can be shipped and integrated in products destined around the world.

With the OEM3000, your product can integrate the gold-standard INS technology that is trusted by OEMs, suppliers and innovators worldwide. Even industry bodies like EURO-NCAP trust in our technologies to deliver the precise measurement performance they require.

The OEM3000 v3 is the latest version of our top tier integrator products. Incorporating years of R&D and more than two decades of inertial navigation experience and expertise, it is undoubtedly our best solution yet for product integration.

Parameter	OEM3000 v3
GNSS constellations	L1, L2 GPS / L1, L2 GLONASS / L1, L2 Beidou(Optional) / PPP / SBAS
Positioning Accuracy (CEP)	1.5 SPS / 0.6m SBAS / 0.4m DGPS 0.1m PPP / 0.01m RTK
Pitch/Roll Accuracy	0.03˚
Heading Accuracy	0.1˚(single antenna) / 0.05˚(dual antenna)
Measurement rate	100Hz, 200 / 250Hz
Operating temperature	-40˚C to +70˚C
Specification temperature	-10˚C to +50˚C
Power input	10-50V
Power consumption	15W
Dimensions	184 x 120 x 71mm
Weight	1.4kg
Logging capacity	32GB
Interfaces	Ethernet(x3), Seria (x3)
Dual antenna	Yes
