Lux HD

Precision LIDAR & Validation System

>

Sensor

>

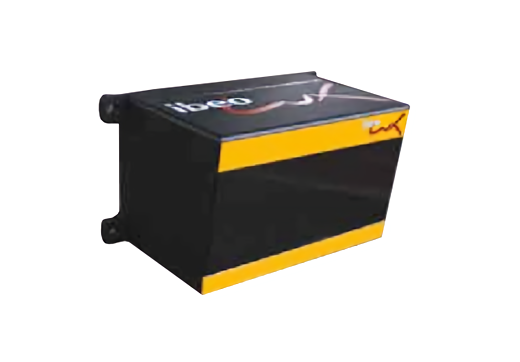

Lux HD

Lux HD

ibeo heavy duty four layer/multi-echo Lux sensor

The ibeo LUX HD laser scanner is based on the standard ibeo LUX but it is characterized, in particular, by its robustness in heavy duty environments.

The ibeo LUX HD scans and measures simultaneously on 4 parallel layers to compensate for the rocking movements of a vehicle and for detection of slopes. In addition, up to 3 reflections can be detected per measurement per layer.

Key Features

Based on the awarded ibeo Lux technology

Robust and reliable especially under extremely dusty conditions

Range up to 90m

Multiple layers for pitching compensation

Embedded data (pre-)processing (ground and clutter classifications)

Embedded object classification and tracking (up to 65 objects)

Multiple echo detection for excellent performance under all weather conditions

Downloads

Brochure
