GPS-Base

GPS-Base

GNSS Corrections

Small GNSS base station for RTK applications

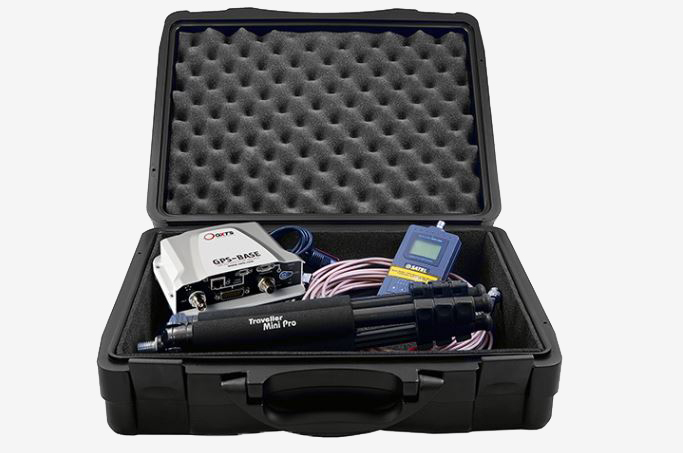

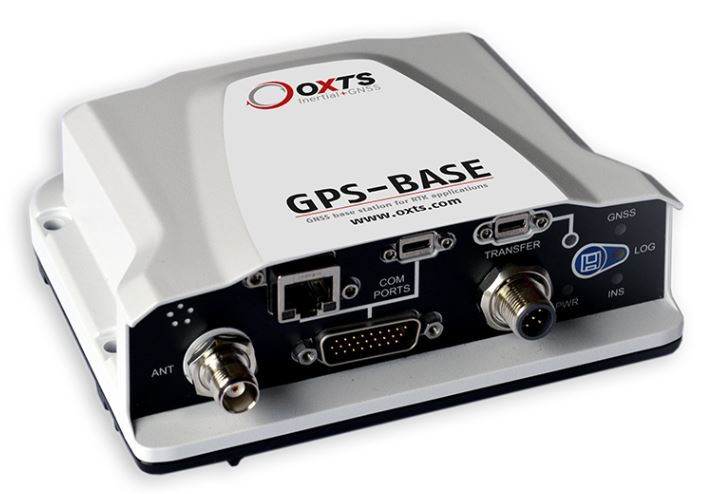

The GPS-Base is a small GNSS base station that provides RTK corrections to one or more differential enabled GNSS receivers via radio modem. Correction data can also be logged to a PC when connected.

GNSS corrections in real-time

The GPS-Base calculates and then transmits differential corrections to local GNSS receivers. Differential corrections are used by the GNSS receiver in INS+GNSS products to achieve centimetre level accuracy. Corrections are sent to the GNSS/INS via radio modem for use in real-time, but can also be output to a local PC and stored for use in post-processing.

Applications

Useful in permanent installations that require RTK corrections

Alternative to RT-Base S where IP65 and mobility are not required

Key Features

Survey-grade GNSS receiver

Radio modems included

RTCA, RTCM correction types

Raw data logging on PC

Downloads

Brochure
