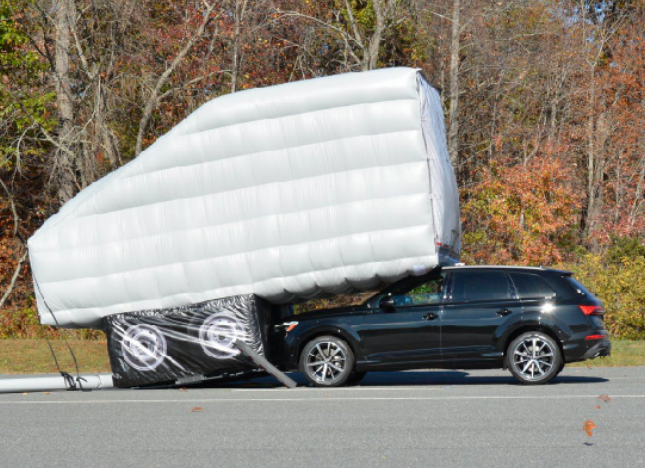

Designed for Front Crash Prevention (FCP) Testing
· Realistic simulation of a dry Vanguard trailer for safer testing

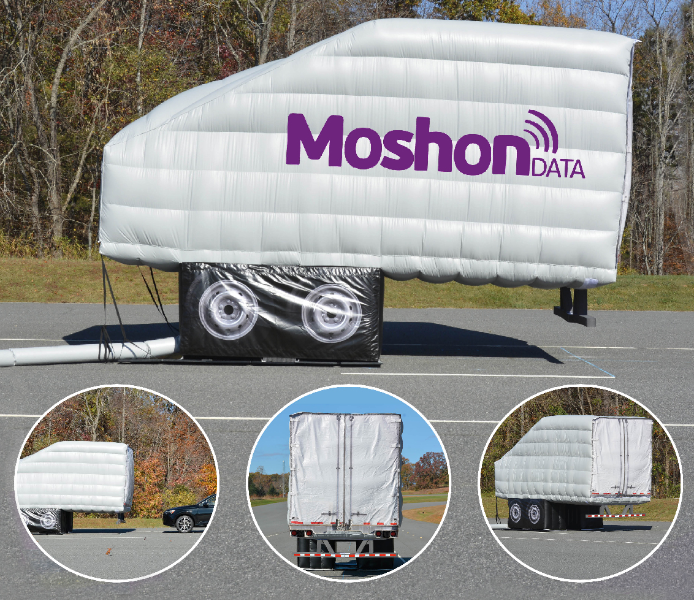

· Overhang design replicates a truck trailer for accurate Radar signature characteristics
· Multi-sensor compatibility developed for LiDAR, Radar, and Camera-based sensors
· Customisable options available e.g. Bespoke text, branded covers, or colour variations
Built for the IIHS Vehicle-to-Vehicle Front Crash Prevention (FCP) 2.0 Test Protocol
A combination of inflatable and foam components with high-tech fabrics and
complex construction aimed at replicating the shape of a real semi-truck trailer whilst
maintaining the correct radar signatures required for high-fidelity simulation.
Application
FCP (Front Crash Prevention)
AEB (Auto Emergency Braking)
Technical Information
Height: 3.96m / 13ft Width: 2.59m / 8.5ft

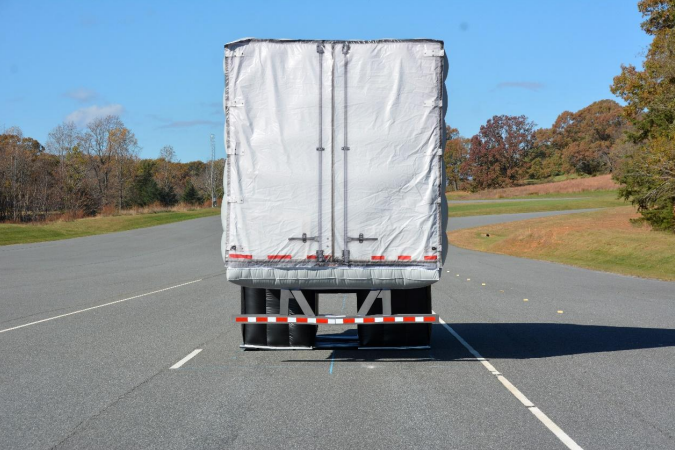

3D depth perception from rear end enables radar to resolve structural features like axle position
Made from Foam and Inflatable components for easy transportation, assembly and storage

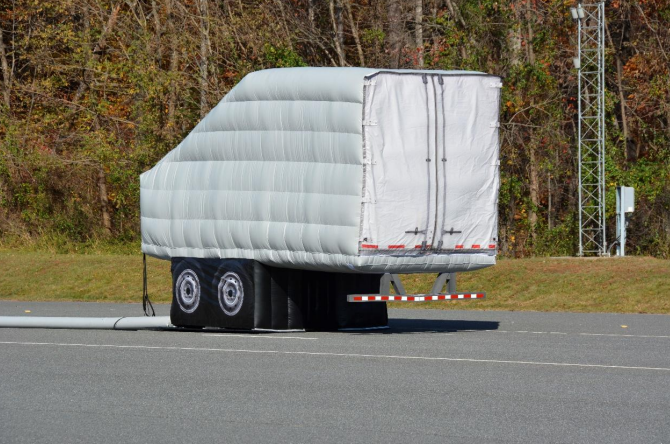

Open space beneath target simulates real trailer gap for accurate radar pass-through

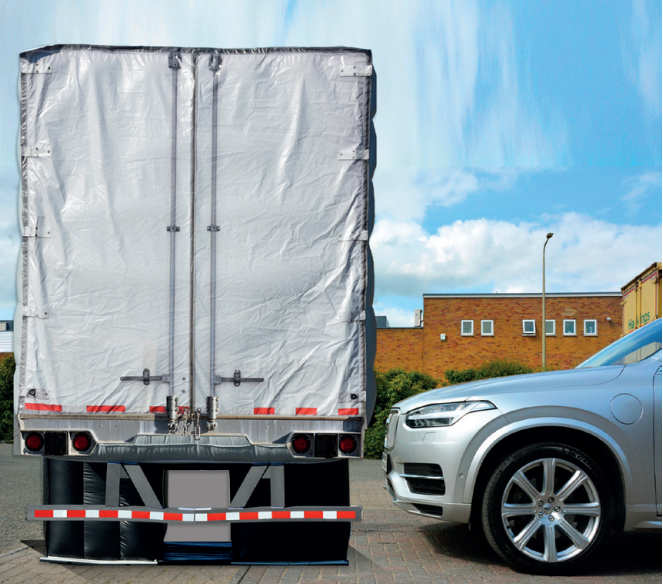

Application of high-tech metallic fabrics to simulate solid metal sections of a real semitruck trailer
