| Major Properties | |
|---|---|

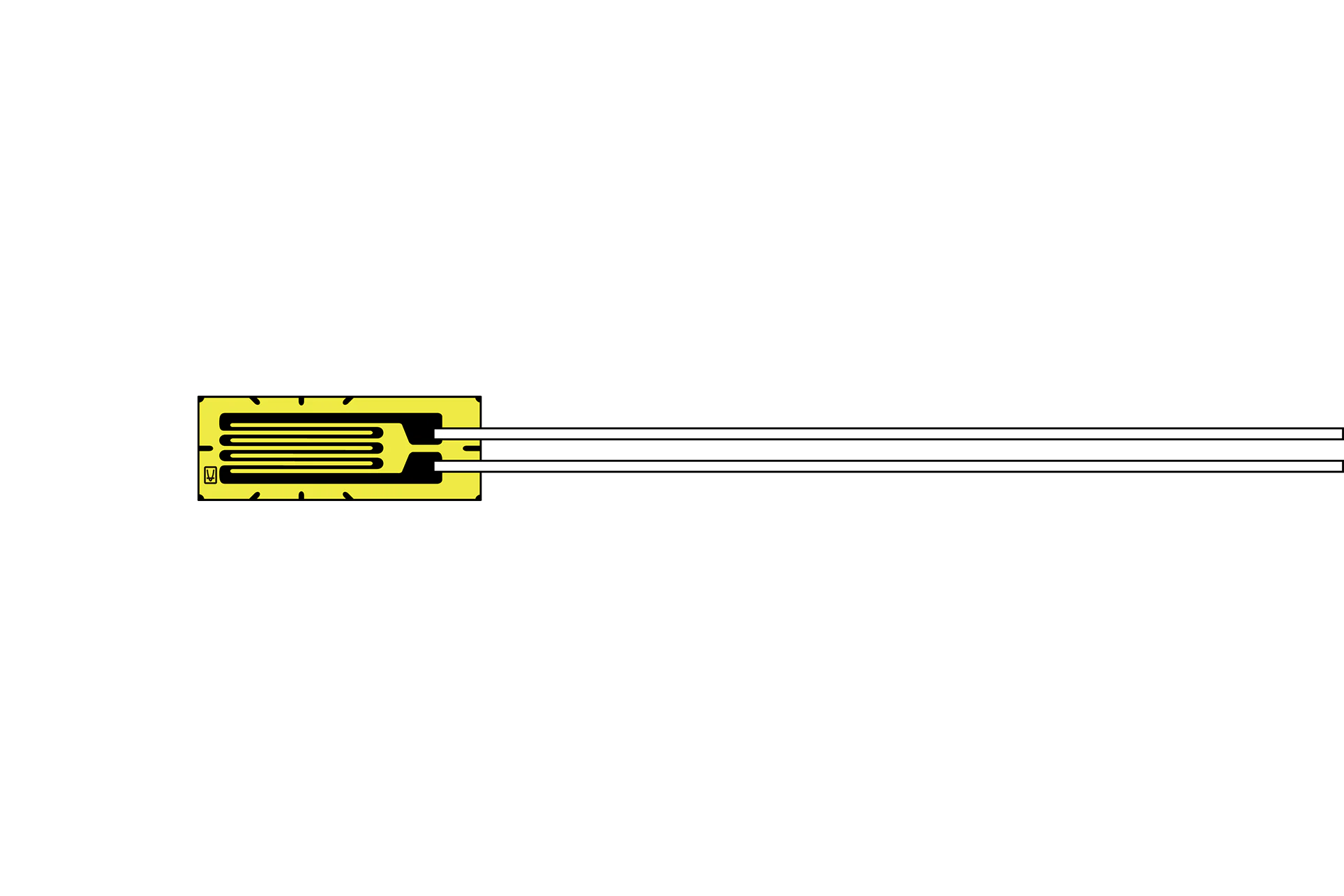

| Materials Resistive element | NiCr alloy foil |
| Materials Base | Polyimide |
| Operating temperature in combination with major adhesives after curing (°C) | PC-600: -196 to 250ºC Operating Time End of the model 11: 24 hours (250℃), 120 hours (200℃) End of the model 16: 12 hours (250℃), 120 hours (200℃) End of the model 23: 12 hours (250℃), 120 hours (200℃) |

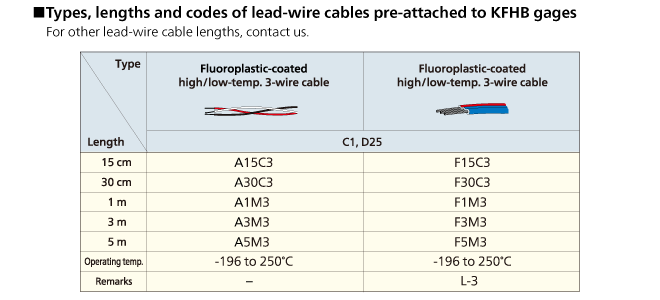

| Operating temperature in combination with major leadwire cables (°C) | Fluoroplastic-coated high/low-temp. 3-wire cable: -196 to 250ºC Fluororesin-coated high/low-temp. 3-wire cable (L-3): -196 to 250ºC |
| Self-temperature-compensation (°C) | 10 to 250ºC |
| Applicable linear expansion coefficients (×10^-6/℃) | 11, 16, 23 |
| Strain limits at normal temp. (approx. %) | 21 |
| Fatigue lives at normal temp. (times) | - |
