Streamlining the operation of mobile ADAS test platforms

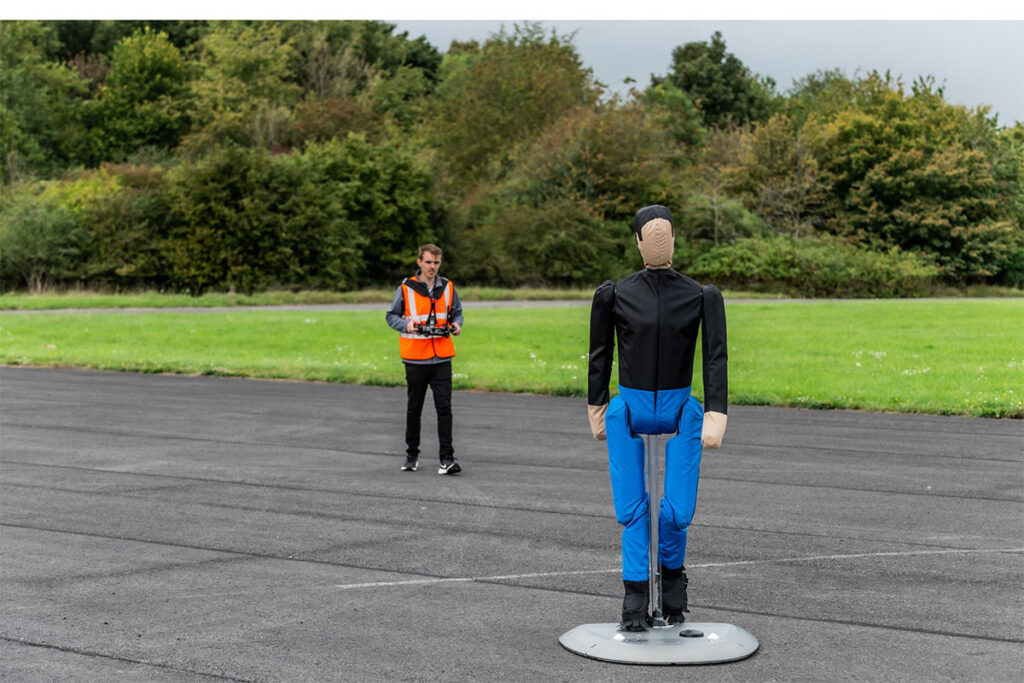

The GTC Remote is a wireless remote control system that allows you to operate our GST and LaunchPad ADAS platforms, including the latest LaunchPad Spin. It is designed for use in single platform ADAS testing, such as pedestrian and cyclist testing, where only one platform is required.

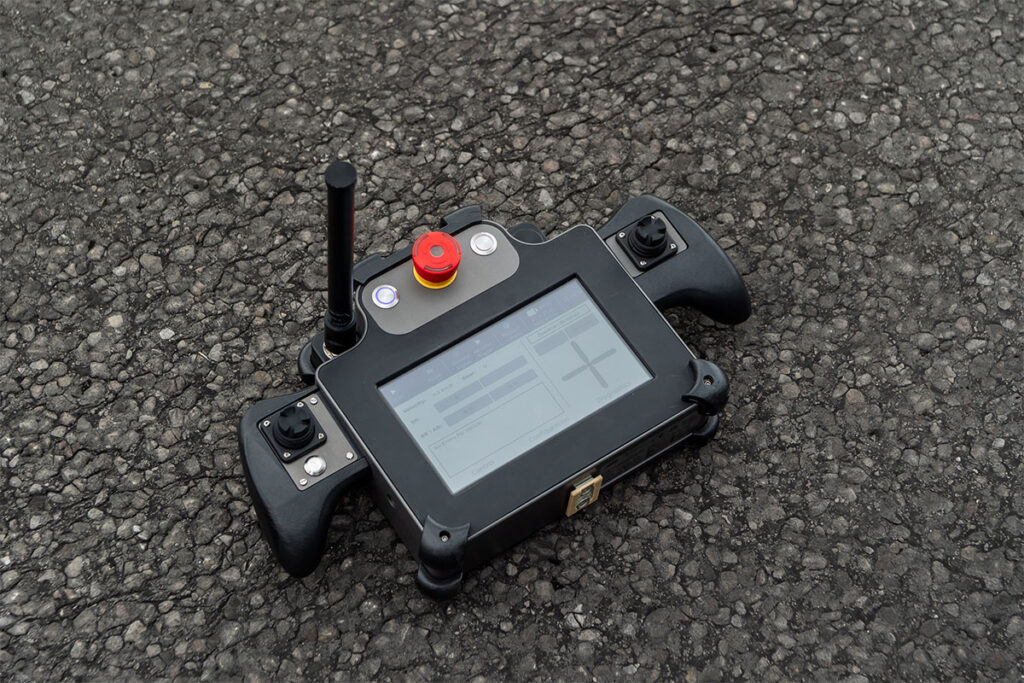

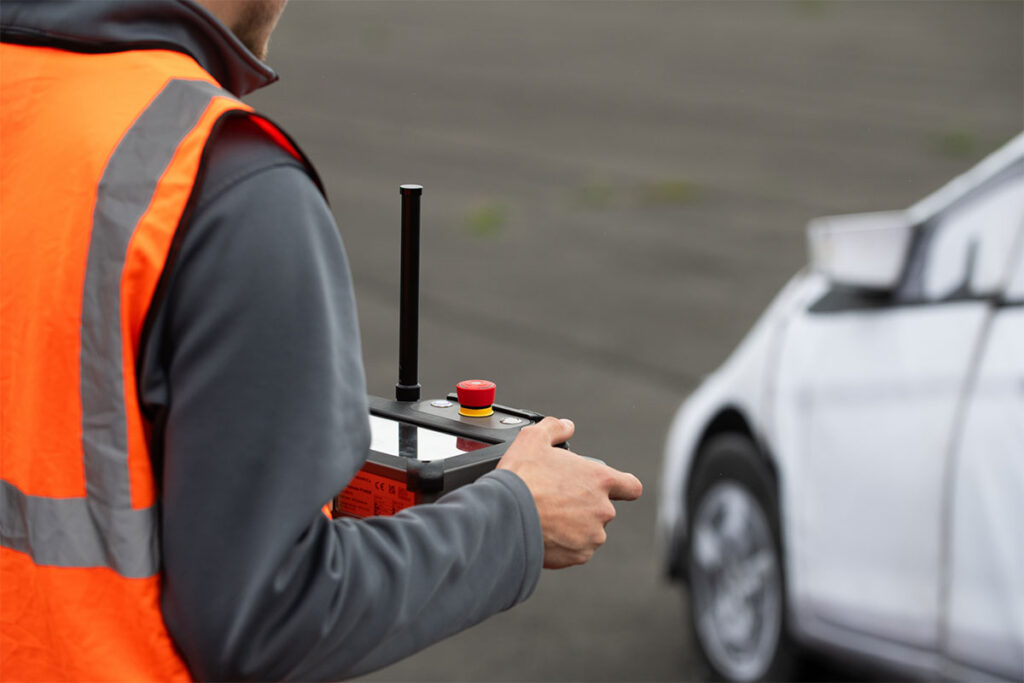

The GTC Remote consists of a handheld unit that integrates joystick functionality with a display, radio, safety controller and base station software. It eliminates the need for multiple hardware components and simplifies test setup and operation.

Key Features

Made to improve test efficiency on the track, the GTC Remote is a versatile, portable, and reliable tool that can enhance your ADAS testing capability whilst retaining the established AB Dynamics safety concept. Designed to help you set up and run test scenarios faster and easier than ever before, the GTC Remote offers several advantages:

A user interface that features simplified and streamlined workflows

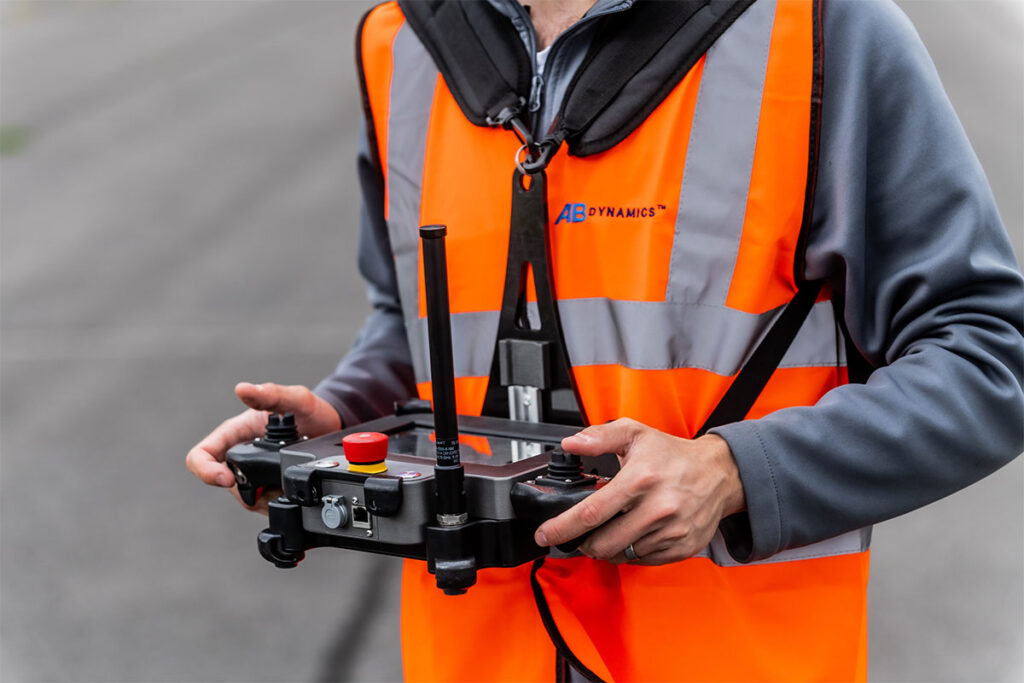

A user-focussed ergonomic design that features a ruggedised, weight-balanced enclosure

Tested to IPX4, it offers moisture protection

A seven-inch colour touchscreen that enables the operator to monitor and control platforms with ease and efficiency

A powerful processor and long-lasting battery for all-day use

A flexible radio option that allows you to use our existing radio options, such as the latest-generation TrackFi PowerMesh, or another preferred communication network

CE, FCC and UKCA certification

Technical Information

Physical
Dimensions(excl. antenna)	37.2cm x 10.4cm x 21.7cm
Weight	3.1kg
Processor	Quad core Cortex-A72 64-bit
Screen	7” damage and scratch - resistant touchscreen display
Interfaces	RJ-45 Ethernet IP radio 10-16.8 V DC passive PoE Charging 12-24 V DC input
Enclosure	Ruggedised with shock protection

Charging/Battery
Battery	Rechargeable lithium ion battery (14.4V, 6.8Ah, 98Wh)
Testing duration	6 hours of continuous running
Charging	0-80% in 2 hours* Mains charging: 90-264V AC input IEC 320-C14 input connector

Communication
Compatibility	Radio modules available for TrackFi PowerMesh, TrackFi and Link Pro Others available upon request
Range	150m - typical distance with direct line of sight

Environment
Operating temperature	Ambient (operating): 0°C to 50°C (32°F to 122°F)
Moisture protection	IPX4

*Quoted charge time tested using 230V AC, 50Hz UK supply
