Soft Motorcycle 360
Soft Motorcycle 360 is the motorcycle target with revolutionary realism

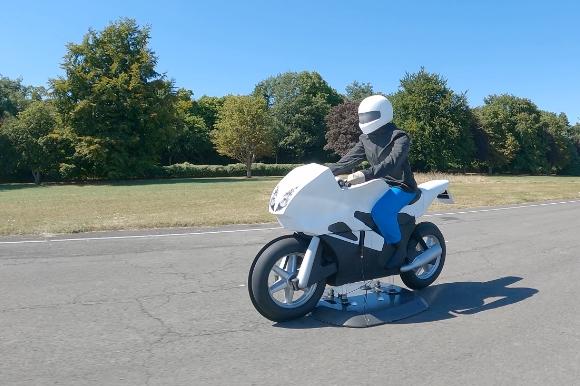

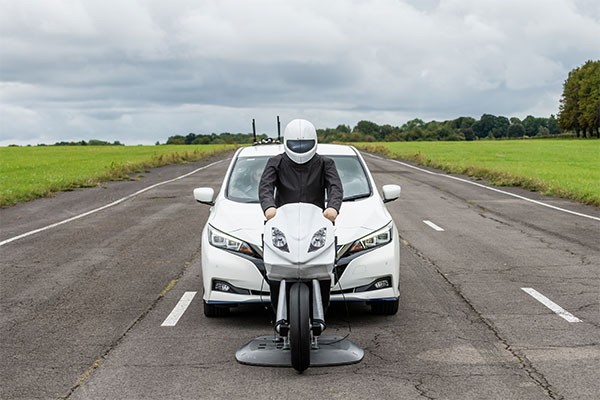

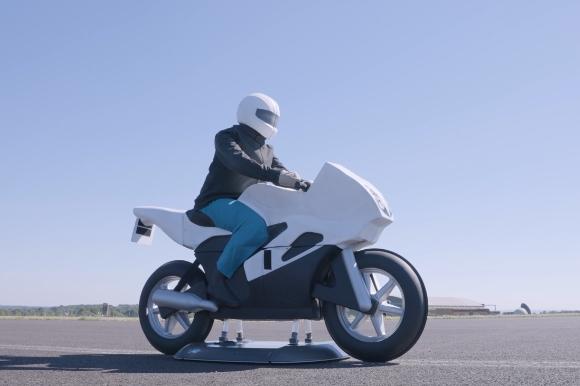

The Soft Motorcycle 360 from DRI is a durable and realistic surrogate motorcycle target supporting test speeds up to 80 km/h. This Euro NCAP approved target features rotating wheels and its realistic shape means that it is reliably recognised by vehicle sensor systems including cameras, radar and lidar.

With a modular design, its hollow moulded construction provides compliance when hit by a test vehicle and minimises the risk of damage. The target is also compatible with our LaunchPad 80 VRU platform. The combination of the Soft Motorcycle 360 and LaunchPad 80 offers a comprehensive solution for Euro NCAP motorcycle test scenarios ensuring accurate and repeatable results.
Technical Information
Compatible with our LaunchPad 80, the Soft Motorcycle 360 is a Euro NCAP surrogate motorcycle target with revolutionary realism.
Dimensions
Wheelbase 1460mm
Wheel diameter 635mm
Overall height 1670mm
Width 610mm
Performance
Rated maximum speed 80km/h
Water resistance Yes
Supported sensor testing
Ultrasonic 80km/h
Mono/stereo camera Yes
Lidar Yes
Radar Yes
Compliance
Euro NCAP TB 029 Yes
ISO 19206-5 WD Yes
Downloads
Brochure
