SX proFRAME - The modular video and data grabbing solution

The SX proFRAME system builds on years of experience developing Hardware-in-the-Loop (HiL) systems for safety-critical automotive applications. Its modular approach building on the flexibility of a powerful FPGA core provides the perfectly matched high-end solution for your HiL needs and is ideal for rapid prototyping.

A typical system consists of an SX proFRAME base board with up to four camera adapters, each with up to two interfaces to cameras or embedded control units (ECUs). The unique range of our camera adapters allows you to connect nearly all types of automotive cameras. Other adapters (e.g., GigE Vision, Camera Link, HD-SDI, CAN) are available on request.

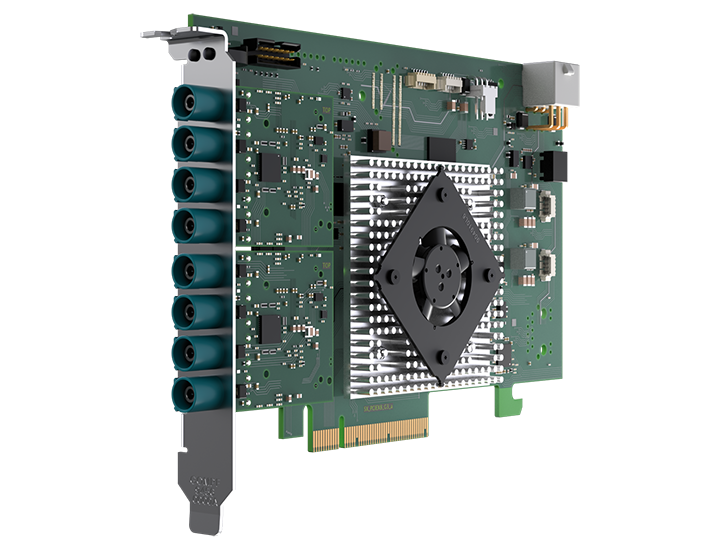

proFRAME Base Board 3.0 PCIe

All the advanced features of the CompactPCI® Serial version, but realized as a PCI Express® board for regular PC systems. Fully compatible with the new camAD3 camera adapter line.

+ 2× camAD3 camera adapter interface, each max. 40Gbit/s video data interface
· 4× CSI-2® interfaces 4 lanes each up to 2.5Gbit/s.
Total 40 Gbit/s or
23× LVDS data lanes each up to 1.6Gbit/s.
Total 36.8 Gbit/s
· 4× I2C interface (1 MBaud) to serializer and deserializer chips
· 1× I2C interface to internal devices
(e.g., EEPROM, interface FPGAs, PoC pot, …)
· 1× SPI interface to serializer and deserializer chips
· 5 to 24V supply for Power over Coax (PoC)
· FSYNC trigger, interrupt, reference clock and other GPIO signals

+ PCIe® x8 Gen3 Interface (64Gbit/s)
+ AMD Zynq™ UltraScale+™ ZU4CG MPSoC (FBVB900)
+ Processing subsystem: Dual-core Arm® Cortex™-A53MPCore™ up to 1.3GHz
+ 2GB DDR4 of PS (processing system) memory, up to 150 Gbit/s
+ PCI Express® form factor, board dimensions: 175.26mm × 106.68mm (full height, half length)
+ Temperature range: -20 to +85°C
