Small capacity??High sensitivity Tension/Compression Load Cells

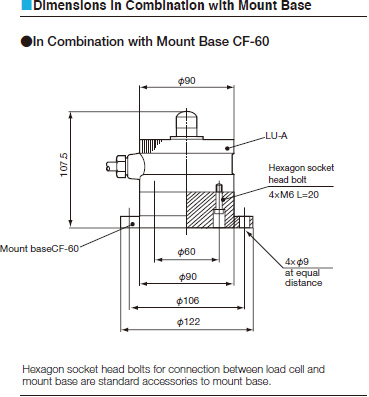

A straight beam is used for the strain column to enable highly accurate measurement of small loads.| Model | Rated Capacity | Natural Frequency(Approx.) |
|---|---|---|
| LU-5KA | ??50N | 200Hz |
| LU-10KA | ??100N | 330Hz |
| LU-20KA | ??200N | 500Hz |
| Performance | |
|---|---|
| Rated Capacity | See table above |
| Nonlinearity | Within??0.3% RO |
| Hysteresis | Within??0.2% RO |
| Repeatability | 0.2% RO or less |
| Rated Output | 1.5 mV/V (3000??m/m) ??0.5% |
| Environmental Characteristics | |
| Safe Temperature Range | -20 to 75??C |
| Compensated Temperature Range | -10 to 65??C |
| Temperature Effect on Zero Balance | Wthin??0.01% RO/??C |
| Temperature Effect on Output | Within??0.01%/??C |
| Electrical Characteristics | |
| Safe Excitation Voltage | 15V AC or DC |
| Recommended Excitation Voltage | 1 to 10V AC or DC |
| Input Resistance | 350???0.5% |
| Output Resistance | 350???0.5% |
| Cable | 4-conductor (0.3 mm 2 ) chloroprene shielded cable, 7.6 mm diameter by 5 m long, with connector plug |
| (Shield wire is not connected to mainframe.) | |
| Mechanical Properties | |
| Safe Overload Rating | 120% |
| Natural Frequency | See table above |
| Weight | Approx. 2.3 kg |
