Compact, Amplifier Built in Wiring Hole, 4 mm Diameter,Provided at the Center
Enables simultaneous measurement of 3 forces (Fx, Fy, Fz) in 3 axial directions orthogonal to the transducer and 3 moments (Mx, My, Mz) around the axes. It outputs 6 voltage signals proportionated to 6 detected components.| Model | Rated Capacity | Weight (Approx.) |
|---|---|---|
| LFX-A-1KN | FX ?? ??1000N FY ?? ??1000N FZ ?? ??1000N MX ?? ??40N・m MY ?? ??40N・m MZ ?? ??25N・m |
210g |
| LFX-A-3KN | FX ?? ??3000N FY ?? ??3000N FZ ?? ??3000N MX ?? ??100N・m MY ?? ??100N・m MZ ?? ??50N・m |
420g |
| Performance | |
|---|---|
| Rated Capacity | See table above |
| Nonlinearity | Within ??0.5% RO |
| Hysteresis | Within ??0.5% RO |
| Interference | ??1.5% RO (after correction by interference correction coefficient stated in Calibration Sheet) |
| Note:Output voltage signals of 6-component force should be corrected by interference correction coefficient. Output of each component concerns output of other components. |
|
| Rated Output | Approx. ??1500 mV (from 2500 mV output with no load at the center) |
| Environmental Characteristics | |
| Safe Temperature Range | -10 to 70??C (non-condensing) |
| Compensated Temperature Range | 0 to 60??C (noncondensing) |
| Temperature Effect on Zero Balance | Within??0.05% RO/??C |
| Temperature Effect on Output | Within??0.05%/??C |
| Temperature Effect on Output | |

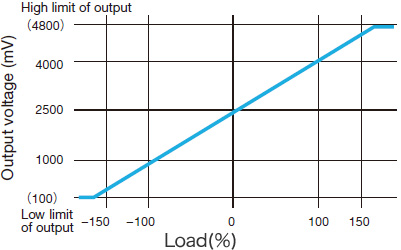

| No-Load Output | 2500 mV at the center (See figure below.) |
 |
|
| Frequency Response | DC to 500 Hz (+1 dB to -3dB) |
| Power Supply | 5V DC??10%, 160 mA or less |
| Cable | 4-conductor (0.3 mm 2 ) chloroprene shielded cable, 6.6 mm diameter by 55 cm long, bared at the tip (9 conductors) |
| (Shield wire is not connected to mainframe.) | |
| Mechanical Properties | |
| Mechanical Properties | 150% |
| Material | Main unit LFM-A-1KN: Aluminum (metallic finish) |
| Main unit LFM-A-3KN: SUS (metallic finish) | |
| Cover: Black anodic oxide coating aluminum | |
| Cable holder: Anodic oxide coating aluminum | |
| Weight | See table above (not including cable) |
| Protection Rating | IP40 |
