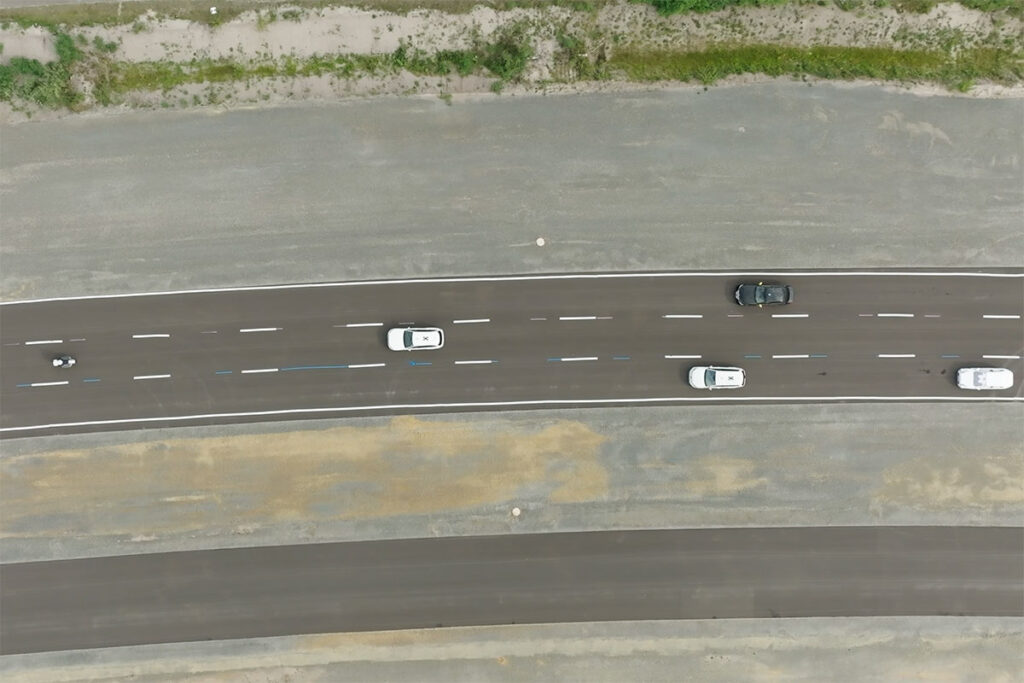

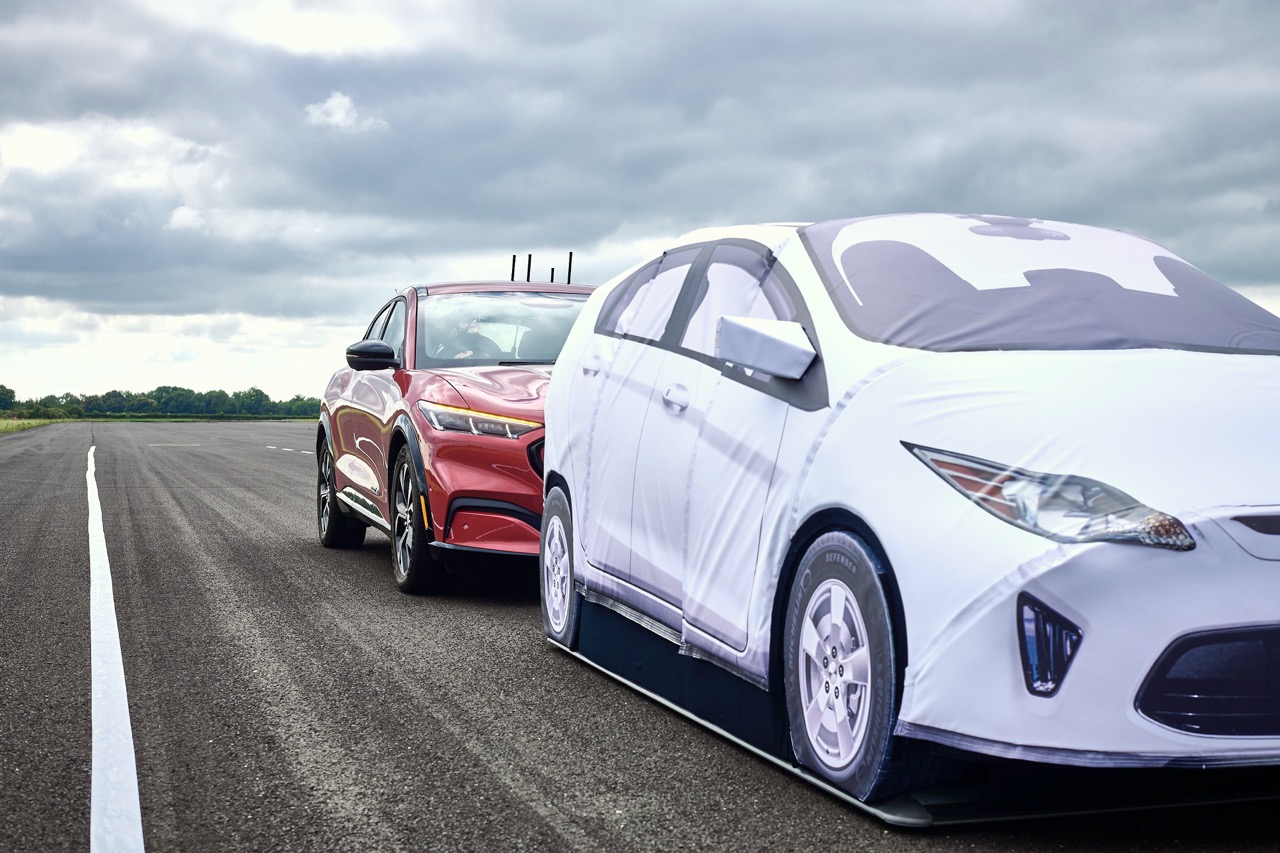

Ground Traffic Control (GTC) is a centralised platform that provides a powerful and scalable solution for accurate monitoring and coordination of proving ground traffic, including robot-controlled vehicles and ADAS target platforms. GTC automates key aspects of test traffic management, reducing the need for manual intervention and enabling operators to handle more traffic. By actively monitoring all vehicles and platforms, GTC reduces the risk of collisions and damage in complex, high-traffic test environments.
GTC is built within AB Dynamics’ Track Applications Suite, our comprehensive track testing software ecosystem that includes all of our industry-leading applications. Its scalable architecture supports future growth, and it offers tailored solutions with GTC Core for small-scale operations and GTC Pro for more advanced scenarios.

Tailored for your test requirements

GTC is available in two versions tailored to your testing programme needs:

· GTC Core is a software-only solution for managing up to six test objects, and ideal for small scale ADAS testing, such as Euro NCAP tests.
· GTC Pro is a server-based solution with enhanced capabilities for managing up to 20 concurrent driverless systems, offering real-time collision detection and advanced monitoring, perfect for large-scale testing environments, such as driverless durability and misuse testing.

Key features

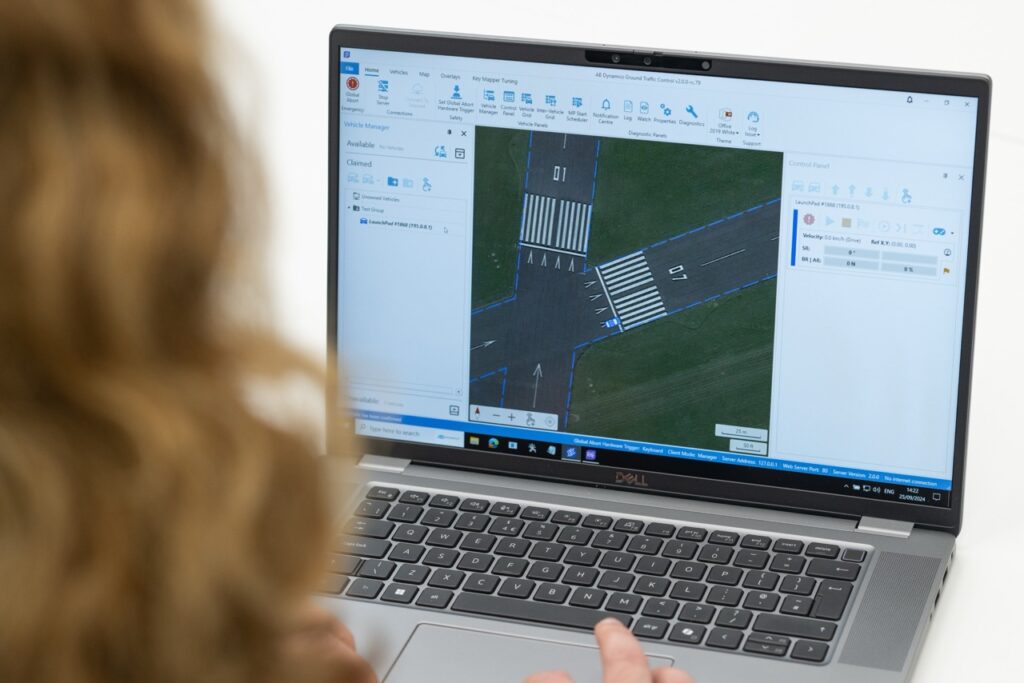

Offers real-time monitoring of vehicles and other test objects from mobile and permanent base station

Automatically identifies and integrates all AB Dynamics systems on the network

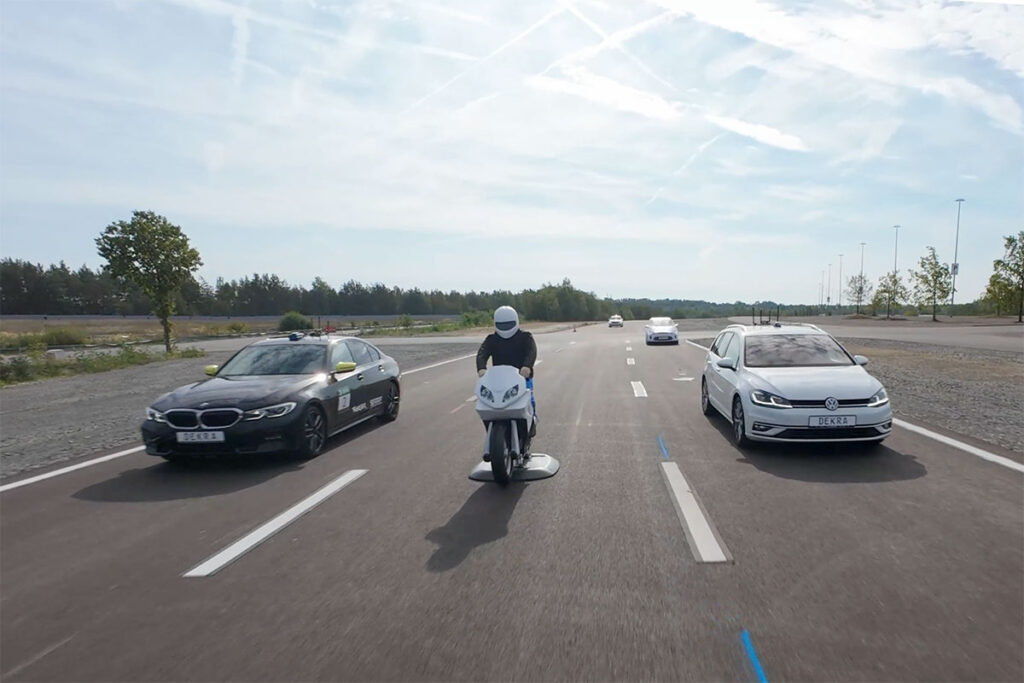

Can monitor and control up to 20 concurrently connected systems including robot-driven vehicles, driverless vehicles and ADAS target platforms.

Allows users to tailor screen layouts to their specific needs. With multi-screen support, teams can dedicate displays to different testing aspects, enhancing monitoring and situational awareness.

All traffic can be stopped with one press of a button

Compatible with AB Dynamics systems including driving robots, Flex-0, SPT, LaunchPad and GST products

Specifications Future-proof your testing operations with GTC. Choose between GTC Core for smaller operations and GTC Pro for advanced requirements.

Technical Information

General
Maximum number of concurrent driverless systems connected	20
Products supported	All PowerPMAC based driving robots, Flex-0, LaunchPad and GST products
Types of user licences	Viewer, operator and manager
Concurrent base station users	Up to 12
Recommended installation	Mobile base station vehicle or permanent control tower
Mapping	Microsoft Bing Maps or high resolution proving ground image map
Customisation	User definable vehicle colours and icons · Custom screen layouts
Real-time robot information display	· Map view and vehicle cards · Customisable live robot data · Live inter-vehicle grid
Compatible accessories	· USB abort button · Logitech driving force racing wheel and floor pedals · Microsoft Xbox controller · Logitech Extreme 3D Pro joystick · Thrustmaster USB joystick

Real time collision checking
Position based	GNSS system tracks vehicle position, direction, and speed to automatically prevent collisions
Position and path based	Enhanced collision checking taking account of the vehicle’s planned path
Zones	· Limit number of vehicles in an area · Set course specific speed limits · Customise collision checking

GTC Pro server hardware
Dimensions	187 x 137 x 42mm
Weight	0.86kg
Temperature rating	Ambient operating temperature: 0 to +45°C
Power input	12V 2A supply (mains adaptor supplied)
