Powered by the RT3000 v4, a complete measurement solution used for Active Safety testing

Previously, the only way to conduct accurate multi-vehicle tests required the set-up and use of two solutions - one for measuring the 'ground-truth' and one for processing relative measurements. If using OxTS systems, that meant using both the RT3000 v4 and the RT-Range S Hunter.

The new generation RT3000 v4 brings together trusted, proven precision measurement capabilities, advanced connectivity capabilities and the intelligence of the RT-Range S Hunter technology.

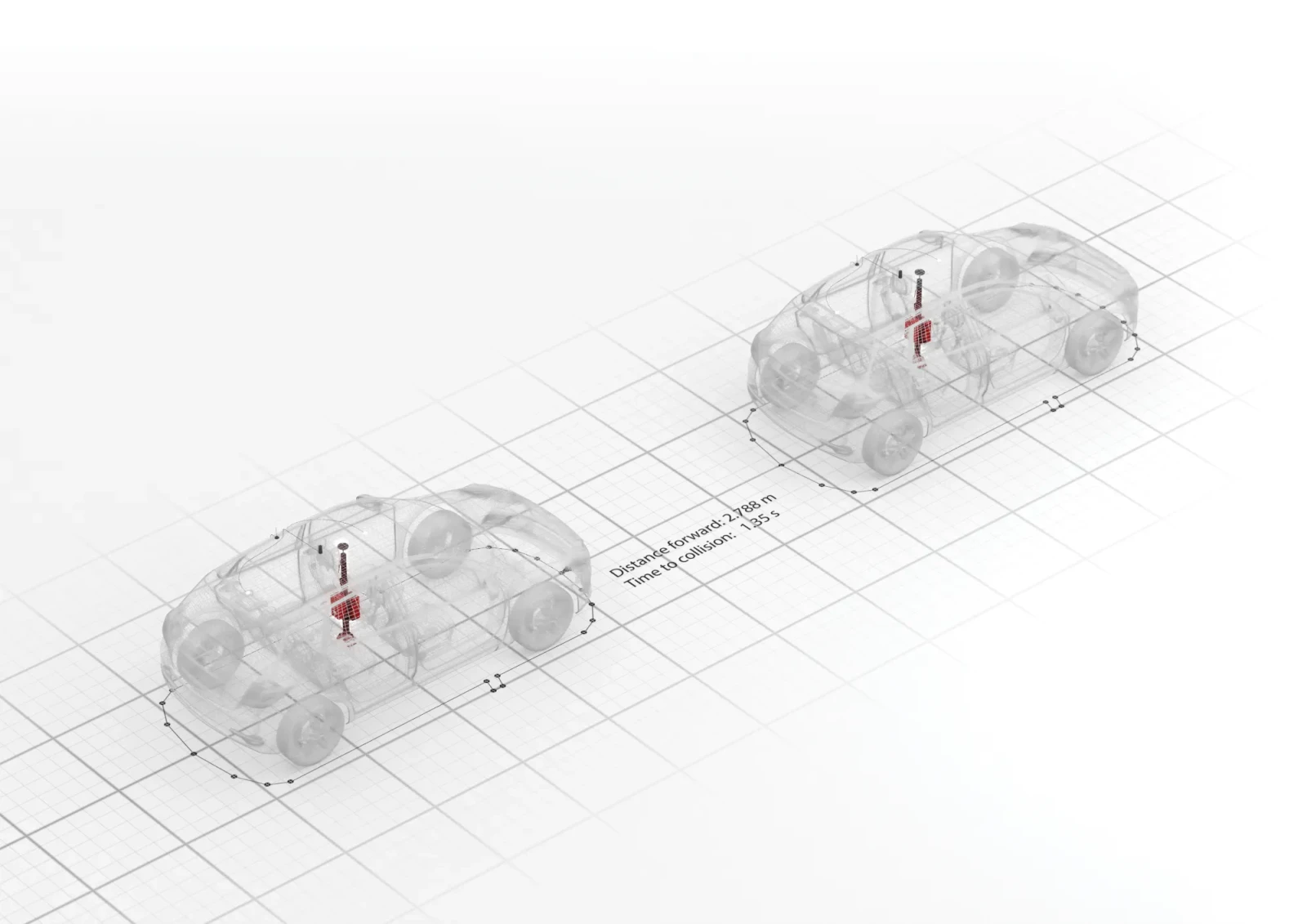

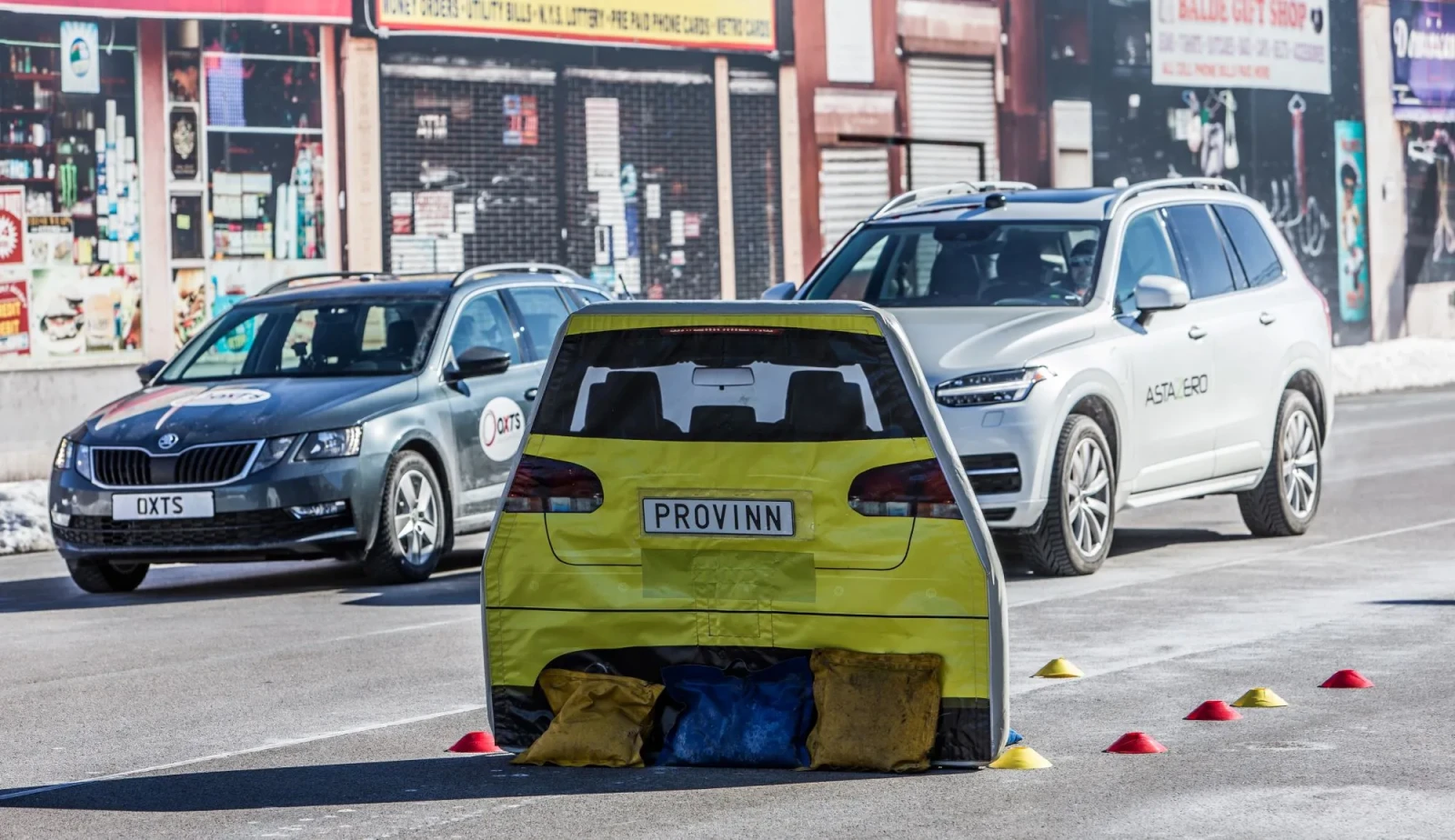

It replaces the RT-Range S Hunter, providing one complete, integrated multi-vehicle testing solution - one "truth box" to ascertain all the range, motion and orientation measurements you need during multiple vehicle ADAS testing.

OxTS offer a range of features designed to help ADAS test engineers to collect reference data that validates the performance of individual sensors and overall safety. These include our Polygon tool and Multiple Sensor Point technology - adapted to cope with the newer more complex test protocols presented by EuroNCAP.

Run complex scenarios while saving significant time

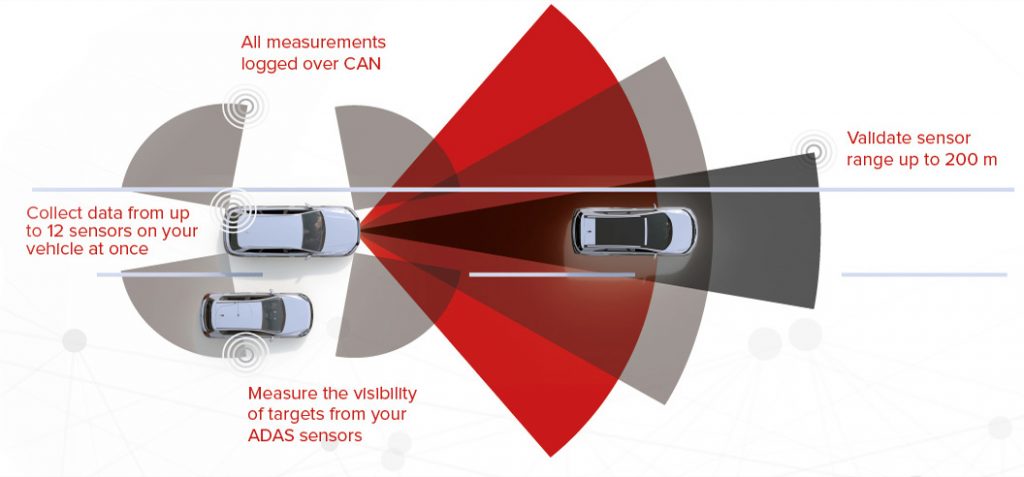

With RT-Range Suite you can independently configure up to 12 sensors on your vehicle, allowing you to run complex ADAS testing scenarios in real-time, saving significant time on the proving ground. All measurements can be output via CAN and ethernet in real time if needed, including:
· Range between sensor and target
· Percentage of sensor view occupied by the target
· Percentage of target visible to the sensor
